Language-agnostic Injection Detection

Lars Hermerschmidt, Andreas Straub, Goran Piskachev

injections grow on trees

Shotgun Unparser

if (recursive || print_dir_name)
{
if (!first)
	DIRED_PUTCHAR ('\n');
first = false;
DIRED_INDENT ();
PUSH_CURRENT_DIRED_POS (&subdired_obstack);
dired_pos += quote_name (stdout, realname ? realname : name,
			dirname_quoting_options, NULL);
PUSH_CURRENT_DIRED_POS (&subdired_obstack);
DIRED_FPUTS_LITERAL (":\n", stdout);
}

https://github.com/wertarbyte/coreutils/blob/master/src/ls.c

mkdir "1
1"
mkdir 2
ls | wc -l

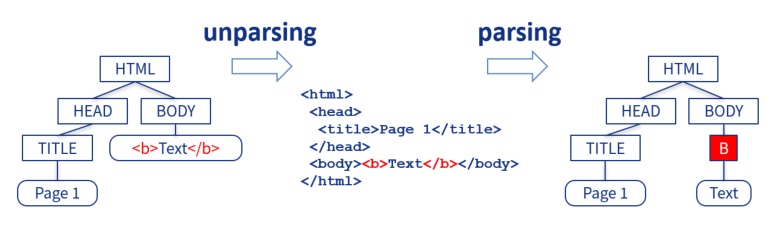

Why do injections exist?

  • Shotgun Unparsers cause Injection Vulnerabilities
But why?
  • Correct Unparser Generators are not used
But why?
  • IO is "soo simple", let's just use the core libs
But why?
  • Core libs don't provide secure input handling
But why?
  • Lacking Awareness for the problem
But why?
  • Core libs don't provide secure input handling

Related Work

  • Language specific static and dynamic analysis:
    SQLi, XSS, ... are well known
  • Language agnostic dynamic aka fuzzing:
    Parsers are known to be broken
  • AUTOGRAM uses dynamic taint tracking:
    Grammar reconstruction from a given parser

Our contribution: Language agnostic detection of injections for textual languages
Awareness

Detection is never complete; Use a constructive approach like McHammerCoder to solve the injection problem.

The Solution

Show, don't tell

Problem space

  • Detecting unparsers
  • Identifying injections in a given unparser
  • Generate attacks
  • Extract full grammar

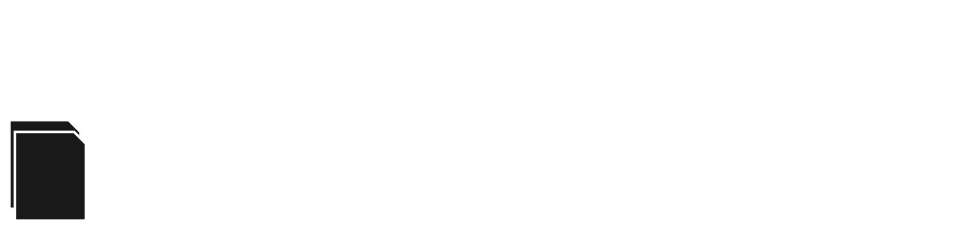

Approach Overview

  • Guided fuzzing using language keyword information
  • Keywords are extracted from unparse trees (UPTs)
  • UPTs are inferred automatically using dynamic program analysis

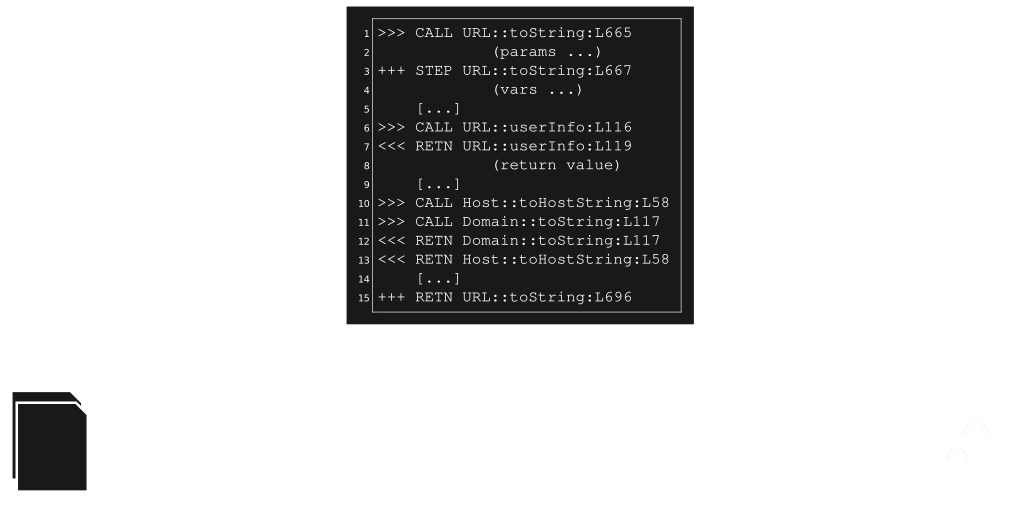

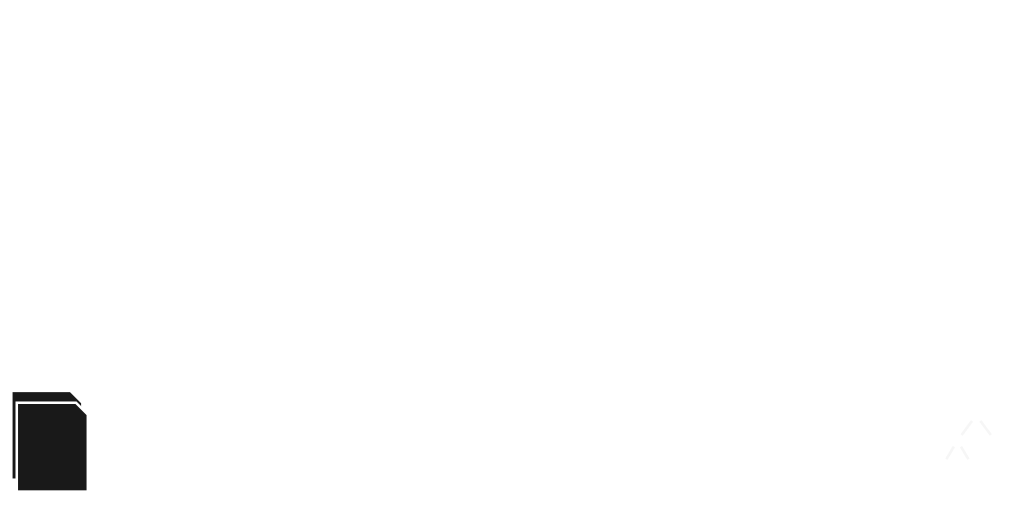

UPT Inference

UPT Inference

UPT Inference

UPT Inference

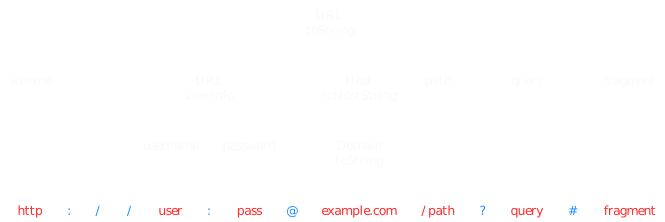

UPTs and Keywords

  • Keywords have no origin in any input
  • They are created by the unparser
  • Their location in the UPT shows where (structurally) they are valid in the language

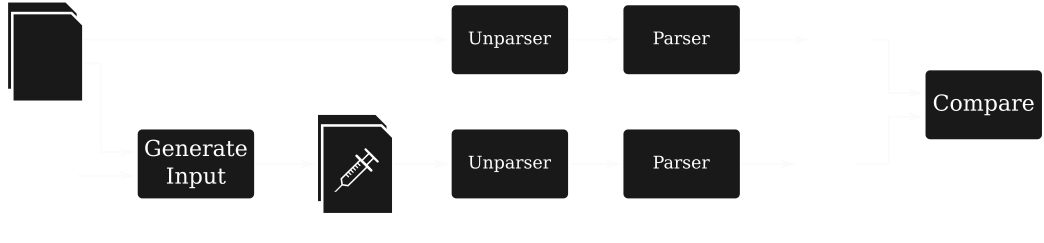

Fuzzing

  • generate targeted injection candidates based on keywords
    • example: "break out" of string-enclosing quotation marks
      •
  • evaluate injection success by comparing parse trees
    • run both original input and modified input through unparser-parser round-trip
    • compare structures of resulting parse trees
      • if the parse tree changed, an injection was found

Results

  • Promising results in case studies
    • very accurate UPTs
    • found (implanted) injection vulnerabilities
    • structural keyword information can significantly improve fuzzing
    • caveat: not a quantitative evaluation
  • Fuzzing automatically yields PoC exploits

Key Observations

  • "Recursive descent unparsers" exist
    • common in ad-hoc implementations
  • Difference to Taint Tracking:
    • leveraging structural information to identify keywords and their scope
  • Requires structural variability in unparser outputs
    • poor UPTs in "template-based" unparsers
    • reduced to common taint tracking
    • better use a sample output for mutation fuzzing

Conclusion

Language-agnostic Injection Detection
  • works for recursive descent unparsers
  • use keywords from UPTs in fuzzing

Awareness
  • Creating output is not just writing an array of bytes
  • Injections might exist in all your unparses

Call to Action
Every programming language's core library deserves an (un)parser

Questions?

Lars: @bob5ec on Twitter

Andreas: andy@strb.org

MARGOTUA code on GitHub
